380V 50Hz Metal Roll Forming Equipment , C Z Purlin Roll Former High Intensity Operation

Wuxi YBT Machinery Equipment Co.,Ltd.
Contact Now

380V 50Hz Metal Roll Forming Equipment , C Z Purlin Roll Former High Intensity Operation

Place of Origin : China

Brand Name : YBT

Certification : CE ISO SGS

Model Number : YT376509

MOQ : 1 Set

Price : Negotiation

Packaging Details : Standard export packing with each machine tied and protected in container

Delivery Time : 45-60 days

Payment Terms : T/T

Supply Ability : 10set

product name : C Z Purlin Roll Forming Machine

Control system : PLC control

Color : As you choose

Speed : 12-15m/min

Thickness : 0.3-0.7mm

Power Supply : 380V, 3-Phase,50Hz

Contact Now

Interchangeable CZ Purlin Roll Forming Machine Manufacturer cold forming machine


Product description
C/Z-shaped steel is automatically formed by a C-shaped steel forming machine. The c-beam forming machine can automatically complete the forming process of C-shaped steel according to the given C-shaped steel size.

C/Z-shaped steel is widely used in the purlins and wall beams of steel structures, and can also be combined into lightweight building trusses, brackets and other building components. Also, it can also be used for columns, beams, and arms in mechanical light manufacturing.

A cold-bending forming machine is a machine that continuously bends a metal strip such as a coil or a strip by a multi-pass forming roll which is sequentially arranged to form a plastic working process of a specific section profile.

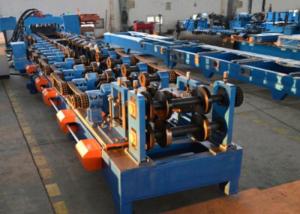

380V 50Hz Metal Roll Forming Equipment , C Z Purlin Roll Former High Intensity Operation


Technical Parameter

Control SystemPLC Inverter Encoder Touch Screen
Main Frame400mm H-Beam
Total Power22 kw
Power Supply380V, 3-Phase,50Hz
Forming Speed12-15m/min
Roll Station18 stands
Roller Diameter110mm
Effective Width80-300mm
Feeding Thickness0.3-0.7mm
Backboard Thickness20mm
Cutter StandardGCr12
Roller StandardGcr15#
Total WeightAbout 10T


Main Components

No.NameQuantity
1Uncoiler1set
2Coil sheet guiding device1set
3Main roll forming system1set
4Punching device1set
5Cutting device1set
6Hydraulic station1set
7PLC control system1set


Forming Processing.

Hydraulic de-coiler - Leveling machine - Servo feeding - Punching machine - Roll forming machine- Out table
380V 50Hz Metal Roll Forming Equipment , C Z Purlin Roll Former High Intensity Operation

Features:

1. The equipment control is PLC control, and multiple safety protection is set during normal production.
2. The bed is welded with steel plates. It is also tempered to eliminate internal stress and avoid deformation of the fuselage.
3. The forming frame is cast iron structure and tempered. High strength and long service life.
4. The material of the roll shaft is 40Cr, and the hardness is HB280 after quenching and tempering treatment.
5. The material of the forming mold is GCr15, quenching treatment, hardness: HRC 56-62 °C.
6. The transmission structure is gearbox transmission. Each molding frame has a gearbox that guarantees time-out, high-intensity operation, and long service life.


Operation and Maintenance :

1. If you need to adjust the machine, please firstly stop the machine before carrying out relevant operations.
2. Chain wheel, bearing and speed reducer of two / three / waves high road way guard rail roll forming machine should be lubricated regularly.
3. The forming roller should be kept clean.
4. With high performance in operation, two / three / waves high road way guard rail roll forming machine generates little noise.
